【转】AMD Radeon R9 Fury X交火评测

[复制链接]

190

主题

2094

帖子

2万

积分

铁杆A饭

5820K + Fury X + 追风者 ES515ETG_

Rank: 20Rank: 20Rank: 20Rank: 20Rank: 20

精华
0
金币
10779
经验
10
贡献
43
发表于 2015-7-4 09:25:26 | 显示全部楼层 |阅读模式

马上注册加入红色小队,结交更多好友,享用更多功能,让你轻松玩转社区。

您需要 登录 才可以下载或查看,没有帐号?立即注册

x
本帖最后由 包子侯爵 于 2015-7-4 10:57 编辑

Title:AMD Radeon R9 Fury X Video Cards in CrossFire - Benchmarks - Synthetic
From:http://www.tweaktown.com/article ... eo-cards-crossfire/

本文经过删减……直接上评测部分
跑分 - 1F  评测-1080p - 2F   评测-1440p - 3F   评测-4K - 4F   表现总结 - 5F  效能 - 6F  总结 - 7F

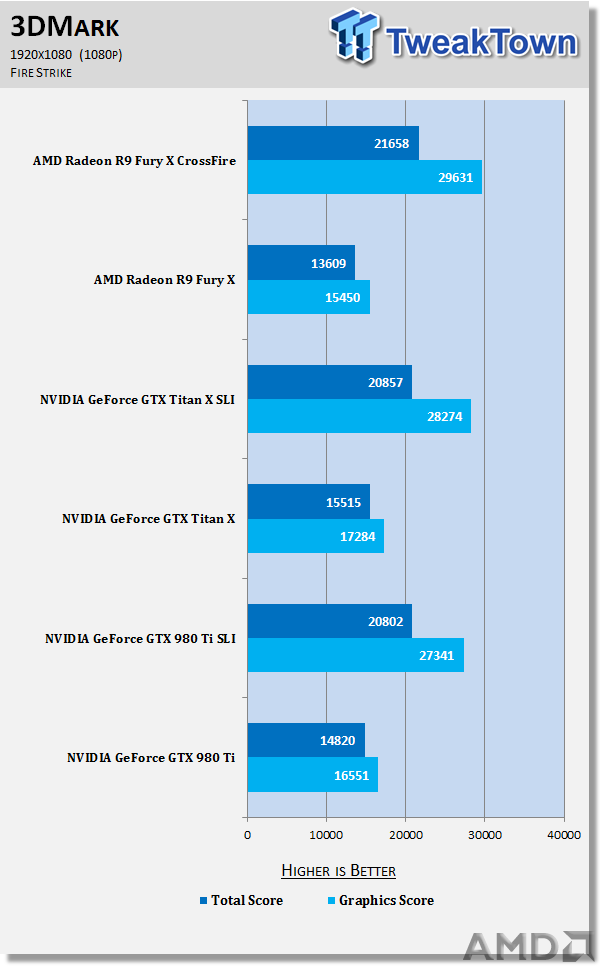

  • 3DMark Fire Strike - 1080p

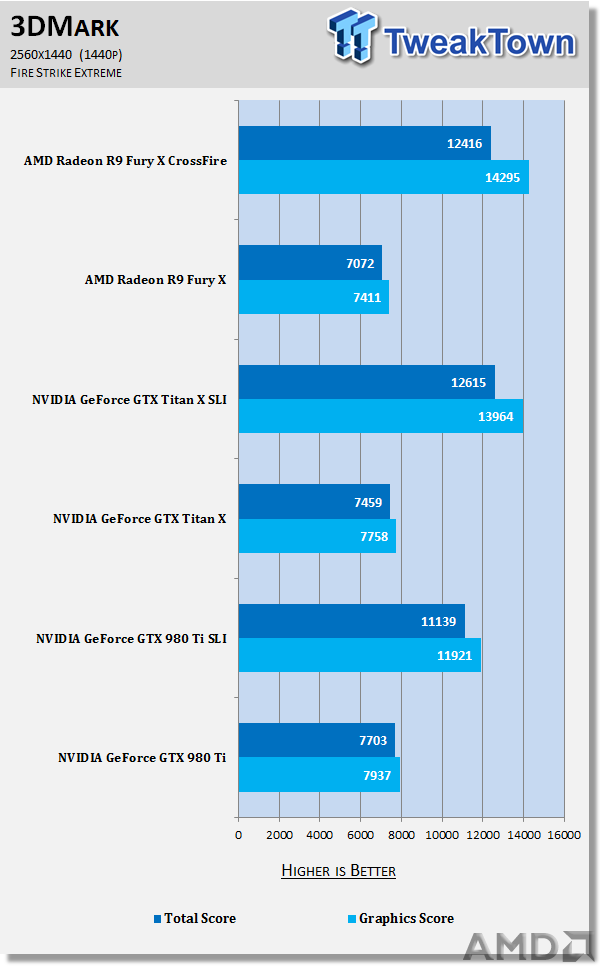

  • 3DMark Fire Strike Extreme - 1440p

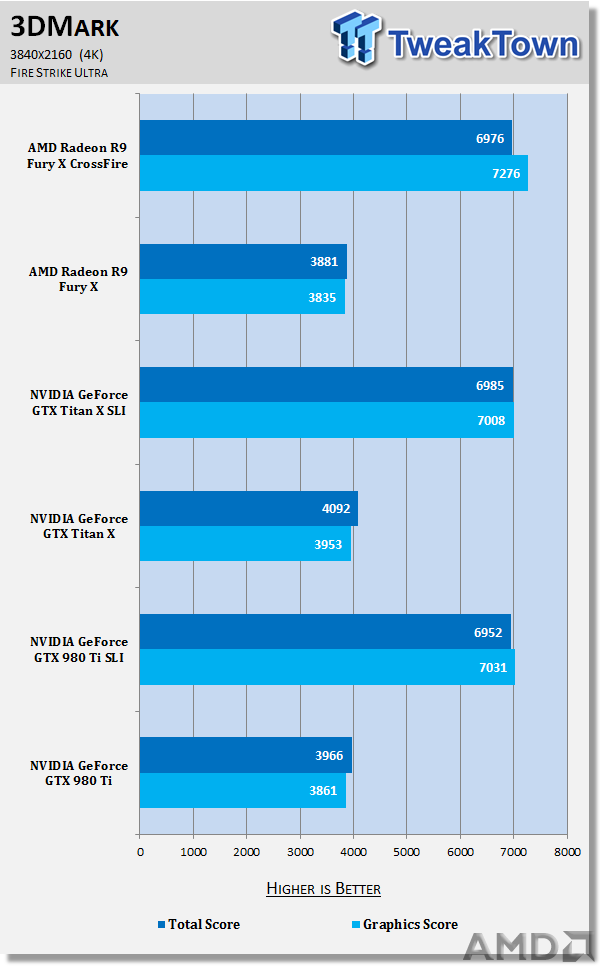

  • 3DMark Fire Strike Ultra - 4K

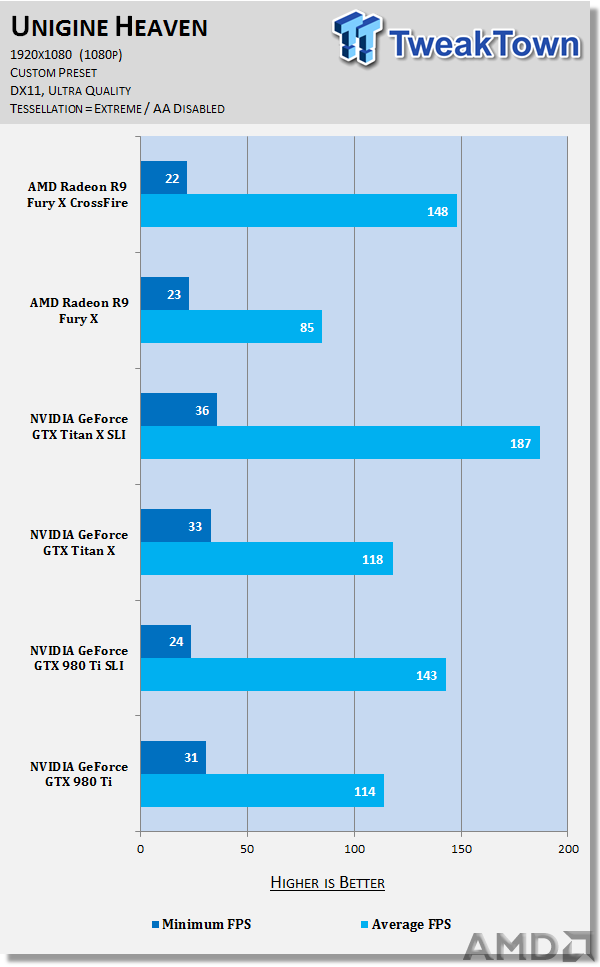

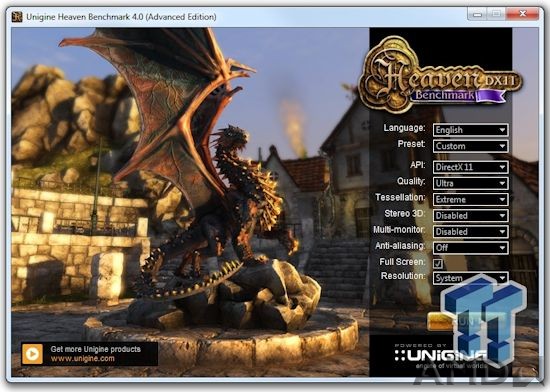

  • Heaven - 1080p

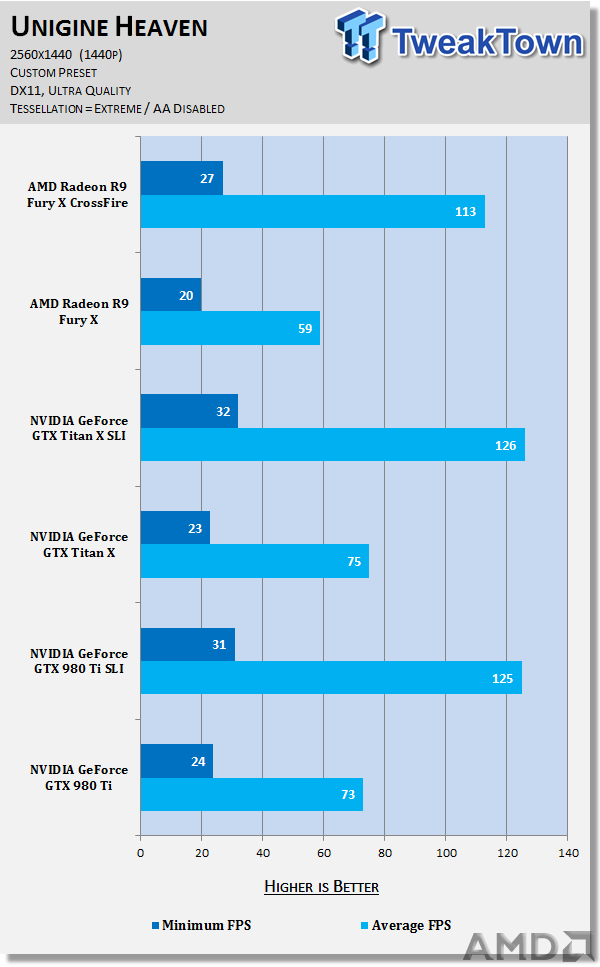

  • Heaven - 1440p

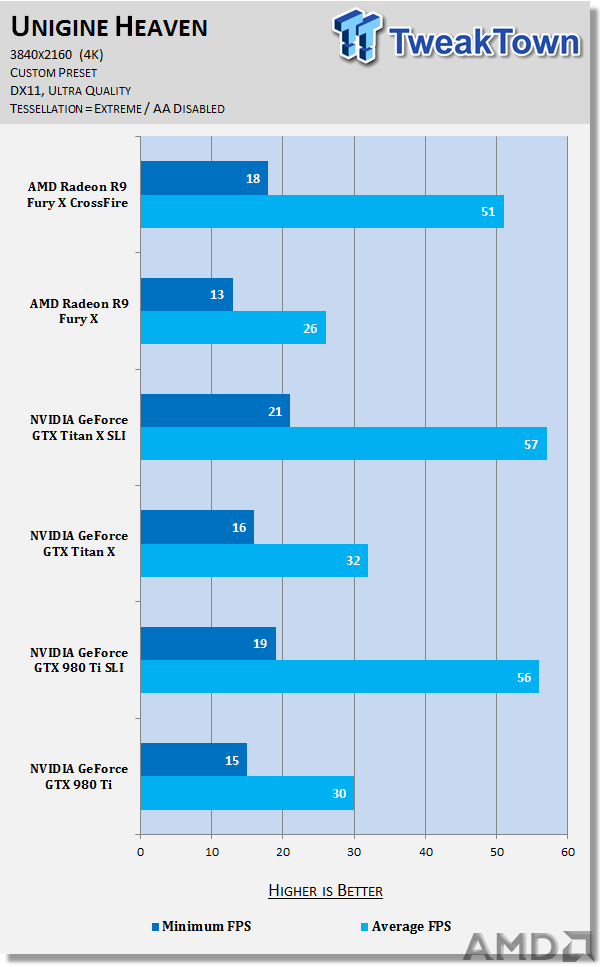

  • Heaven - 4K


AMD smashes the ball out of the 3DMark park with the Fury X cards in CrossFire, where we can see perfect scaling at 1080p, 1440p and 4K. The AMD Radeon R9 Fury X CrossFire setup beats the NVIDIA GeForce GTX Titan X SLI and GTX 980 Ti SLI in 3DMark.

AMD的交火的Fury X在3DMark里展现了强大的实力,我们可以从1080p,1440p和4K里看到。交火的AMD Radeon R9 Fury X击败了SLI的NVIDIA GeForce GTX Titan X和SLI GTX 980Ti。

Heaven isn't so kind to AMD, with NVIDIA beating out the Fury X in every resolution - single, and multi-GPU. This isn't indicative of real-world performance, but it gives us a nice metric to look at and compare our cards. Plus it acts as a great look at power consumption, too.

但是上帝也不总是眷顾AMD,Heaven中Nvidia在单或多GPU下击败了AMD。这不意味着在实际使用中有这样的表现,但这是一个有参考意义的指标。再加上强大的功率。

评分

参与人数 3金币 -2 收起 理由
Mcisu萌 + 2 搬运辛苦了
苏姿丰 -2 山寨
冶天 -2 发帖积极 占楼扣分 以观后效 严禁发生.

查看全部评分

Be AMDish

190

主题

2094

帖子

2万

积分

铁杆A饭

5820K + Fury X + 追风者 ES515ETG_

Rank: 20Rank: 20Rank: 20Rank: 20Rank: 20

精华
0
金币
10779
经验
10
贡献
43
 楼主| 发表于 2015-7-4 09:25:40 | 显示全部楼层
本帖最后由 包子侯爵 于 2015-7-4 09:51 编辑

测评 - 1080p
  • Battlefield 4


This is one game that we did differently, as it does not feature a built-in benchmarking feature. When it comes to Battlefield 4, there are countless ways you can benchmark it. Some find a spot in the single player campaign which is easily repeatable, and use that. For our testing, we've chosen to use a 64-player online multiplayer server for real-time performance statistics.

这个游戏我们使用不同方法来测的,因为没有内置的测试程序。来到战地4,我们有很多方法来测。我们就以单人战役的某一个固定地点做测试。根据测试,我们用64个在线玩家的房间做网游性能数据。

We joined a 64-player map and played for five minutes using FRAPS, pulling our minimum/average and maximum FPS. We did this for each test, we run the game for 5 minutes at 1080p/1440p and 4K two times each. One time with Medium settings, and another with a custom Ultra preset (disabling AA). It's time consuming, but it gives us a perfect look into true real-world performance.

我们加入了一个64位玩家的地图,然后开了FRAPS玩了五分钟,然后取最小最大和平均帧数。我们每次都这么多,然后每5分钟轮流进行1080p,1440p和4K 测试。一次用中等效果,另外一次是用自定义的超高特效(关闭AA)。这很耗时,但是这提供了实际的使用效果。




And again, this time with the Ultra preset.

又进行了一次测试,这次用的是超高特效

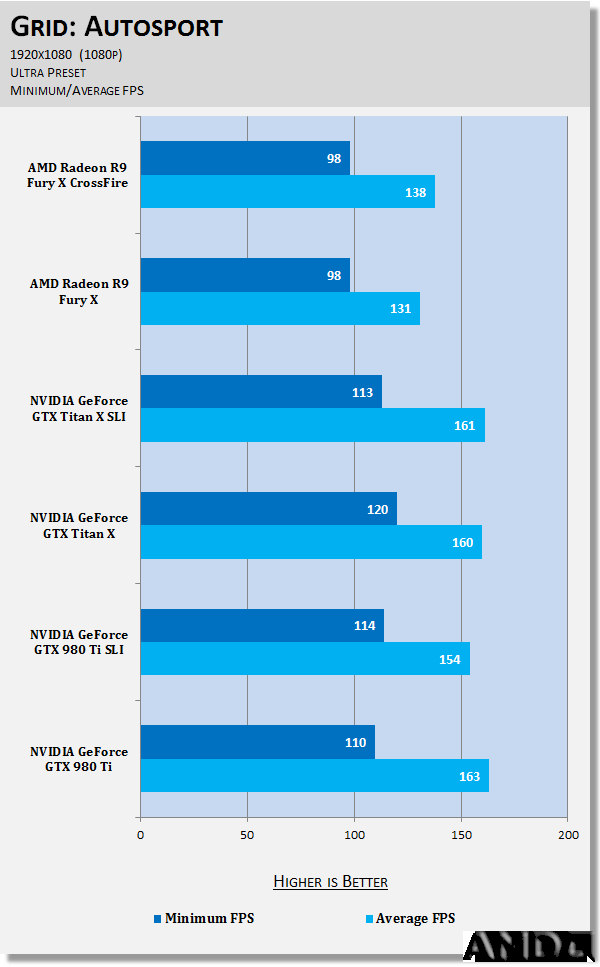

  • GRID Autosport

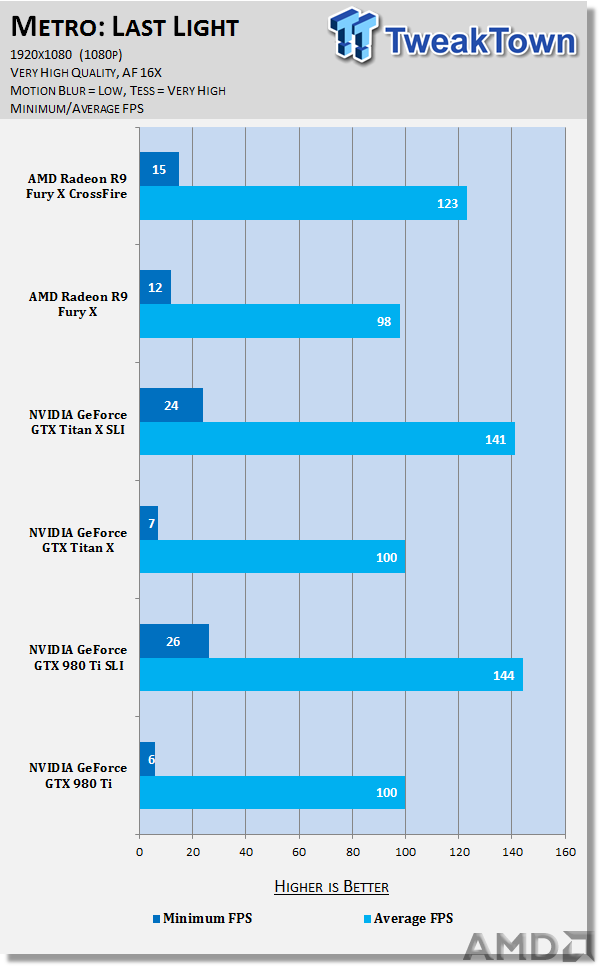

  • Metro: Last Light





  • Middle-earth: Shadow of Mordor

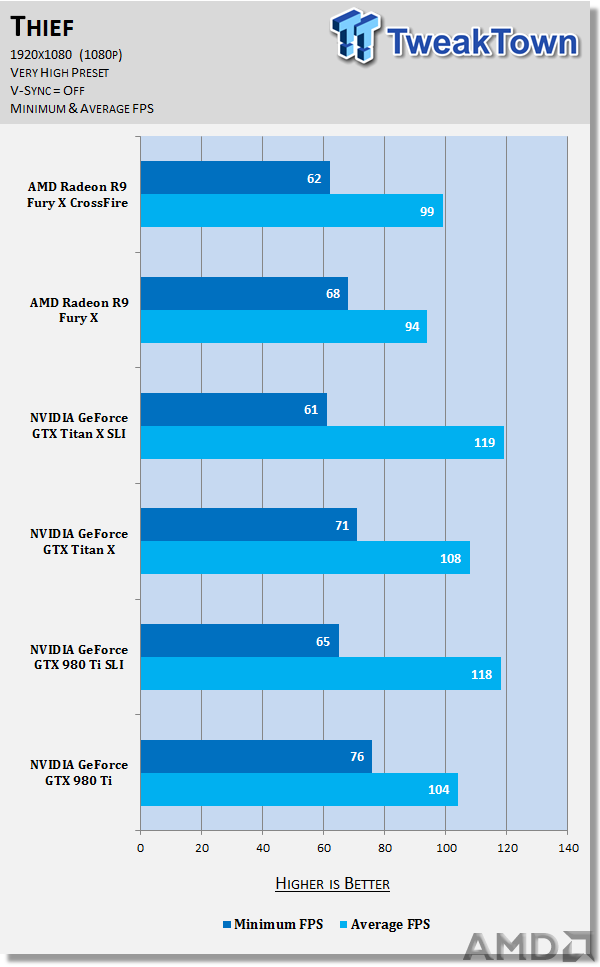

  • Thief





  • Tomb Raider

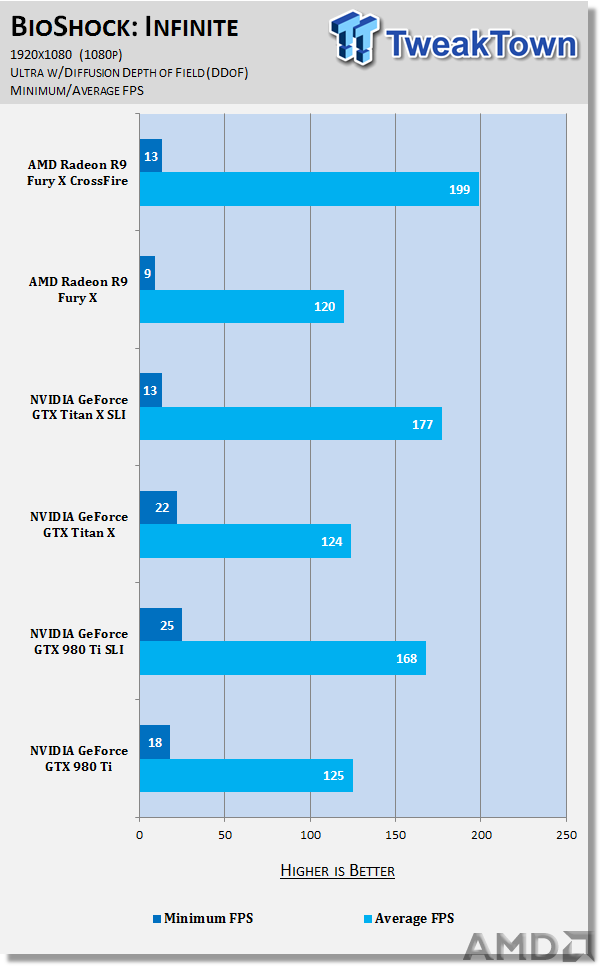

  • BioShock Infinite





You can find our performance summary of all of our gaming tests later in the review.

你可以从我们的总结中找到所有游戏的测试结果。
Be AMDish

190

主题

2094

帖子

2万

积分

铁杆A饭

5820K + Fury X + 追风者 ES515ETG_

Rank: 20Rank: 20Rank: 20Rank: 20Rank: 20

精华
0
金币
10779
经验
10
贡献
43
 楼主| 发表于 2015-7-4 09:25:51 | 显示全部楼层
本帖最后由 包子侯爵 于 2015-7-4 10:01 编辑

测评 - 1440p

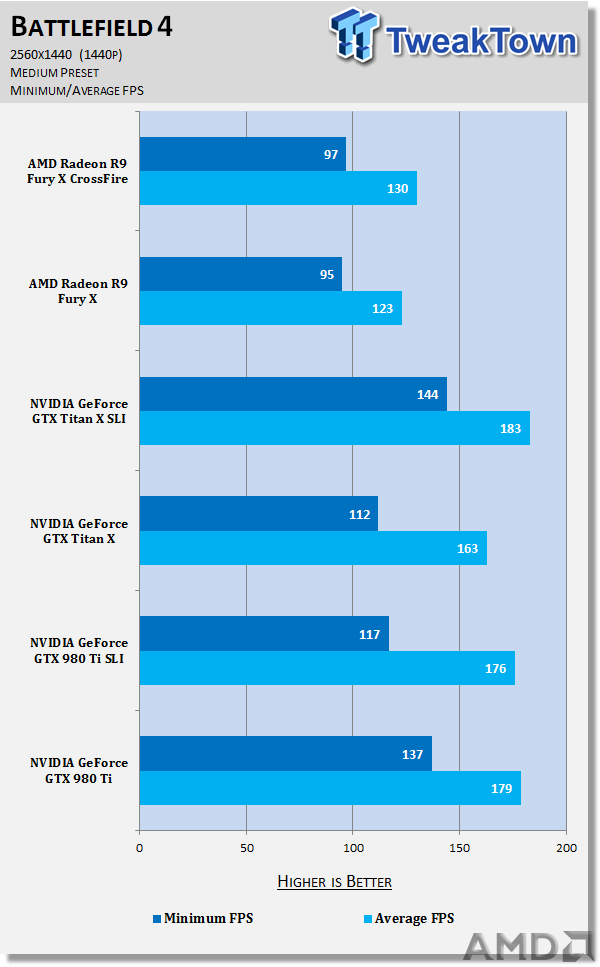

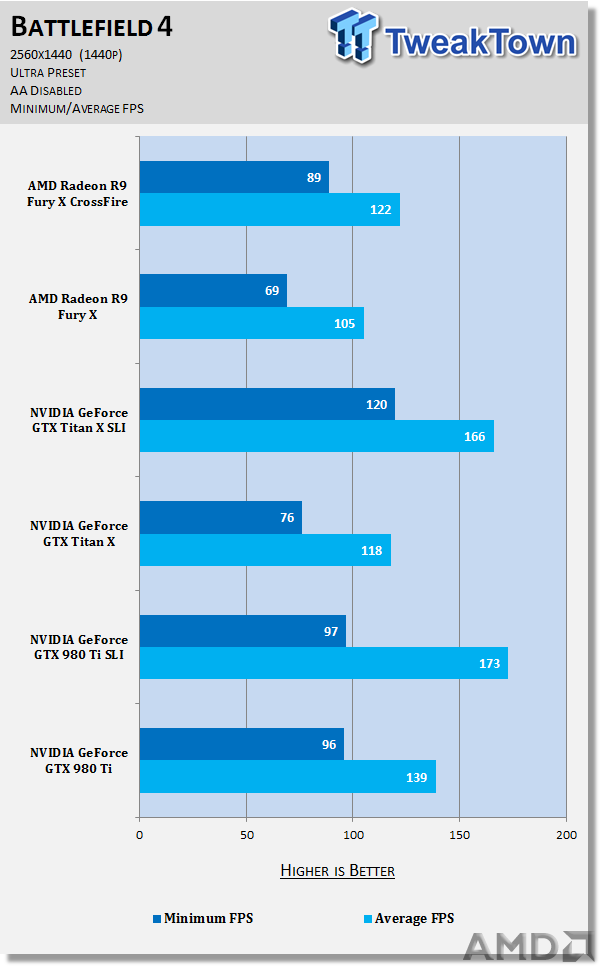

  • Battlefield 4






  • GRID Autosport





  • Metro: Last Light





  • Middle-earth: Shadow of Mordor

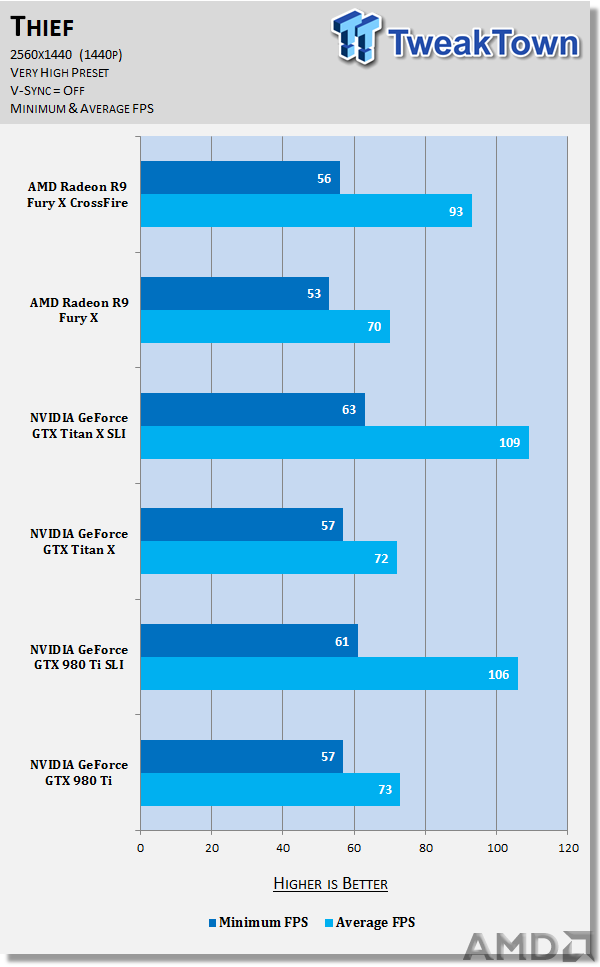

  • Thief





  • Tomb Raider

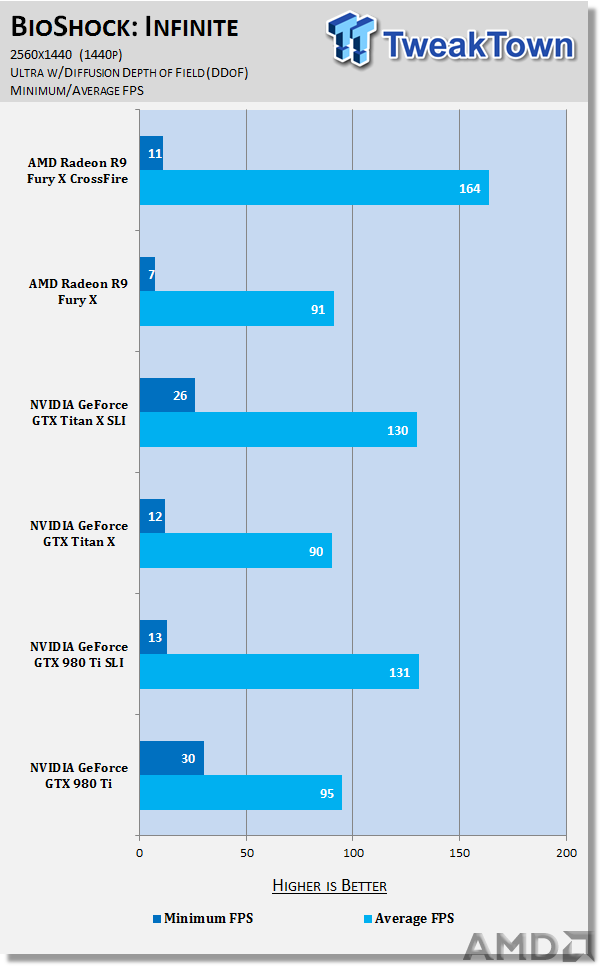

  • BioShock Infinite





You can find our performance summary of all of our gaming tests later in the review.

你可以从我们的总结中找到所有游戏的测试结果。
Be AMDish

190

主题

2094

帖子

2万

积分

铁杆A饭

5820K + Fury X + 追风者 ES515ETG_

Rank: 20Rank: 20Rank: 20Rank: 20Rank: 20

精华
0
金币
10779
经验
10
贡献
43
 楼主| 发表于 2015-7-4 09:26:02 | 显示全部楼层
本帖最后由 包子侯爵 于 2015-7-4 10:04 编辑

测评 - 4K
  • Battlefield 4

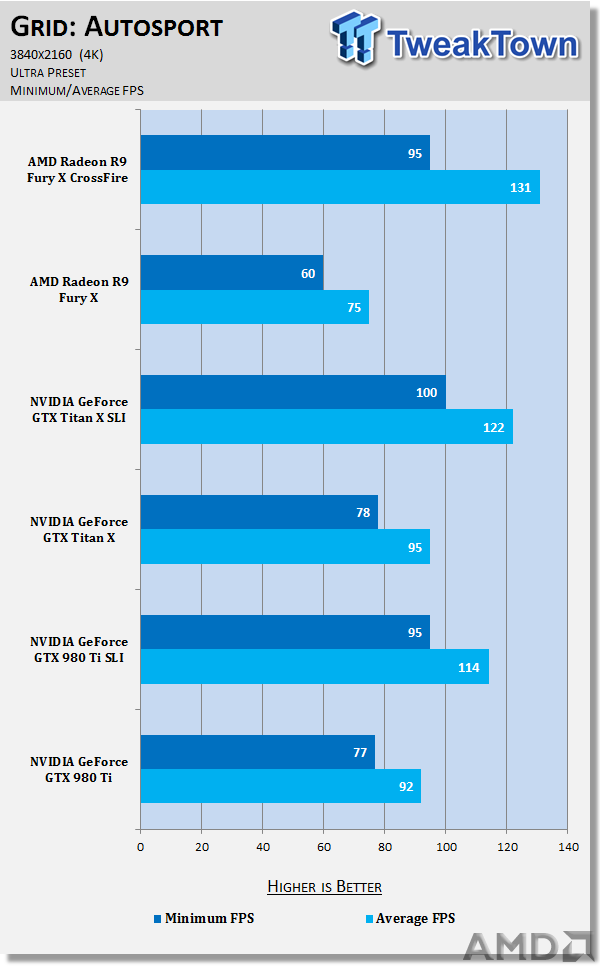

  • GRID Autosport





  • Metro: Last Light





  • Middle-earth: Shadow of Mordor

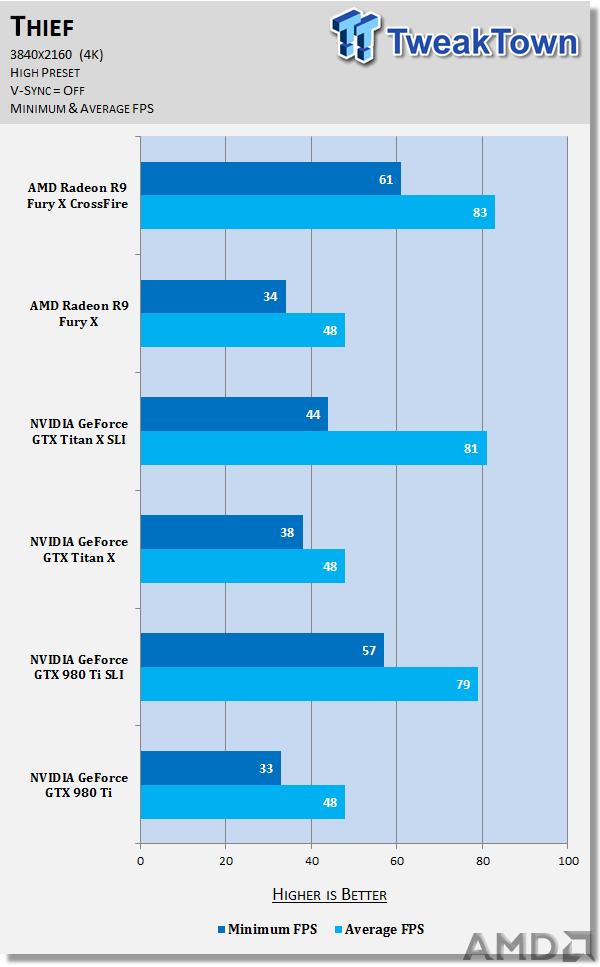

  • Thief





  • Tomb Raider






  • BioShock Infinite





You can find our performance summary of all of our gaming tests later in the review.

你可以从我们的总结中找到所有游戏的测试结果。
Be AMDish

190

主题

2094

帖子

2万

积分

铁杆A饭

5820K + Fury X + 追风者 ES515ETG_

Rank: 20Rank: 20Rank: 20Rank: 20Rank: 20

精华
0
金币
10779
经验
10
贡献
43
 楼主| 发表于 2015-7-4 09:26:12 | 显示全部楼层
本帖最后由 包子侯爵 于 2015-7-4 10:25 编辑

Much More Performance Than We Thought

表现的比我们想象的更好

Hell. I did not expect the Radeon R9 Fury X cards in CrossFire to scale this well with relatively early drivers. I was more than blown away as the resolution increases, and when we get to 4K, you're going to be quite excited by these results. I seriously cannot wait to get a third, and fourth card into my system for some serious testing on single monitor resolutions, and EyeFinity.

我没想到交火的Radeon R9 Fury X用焦躁的驱动会有如此好的表现。随着分辨率的增加,尤其是达到4K,这结果让我们很激动。我等不及要拿到第三和第四张卡来继续在单显示器上测试,还有EyeFinity。



Performance at 1080p

1080p表现

Starting with Battlefield 4, the scaling of the two Fury X cards in CrossFire isn't good at all. But, you're not going to blow $1300+ on two video cards for 1080p, are you? Quickly wrapping up the 1080p performance, the second Fury X doesn't really offer much more performance in GRID: Autosport, but we see some nice gains in Metro: Last Light of around 25%.

一开始测试战地4,两张 Fury X的交火缩放其实不是很好。但是这两张卡才1300+刀,难道不是吗?但我们结束了1080p测试,第二张Fury X没有在GRID: Autosport里提供很多的性能,但是在Metro: Last Light里有大约25%。

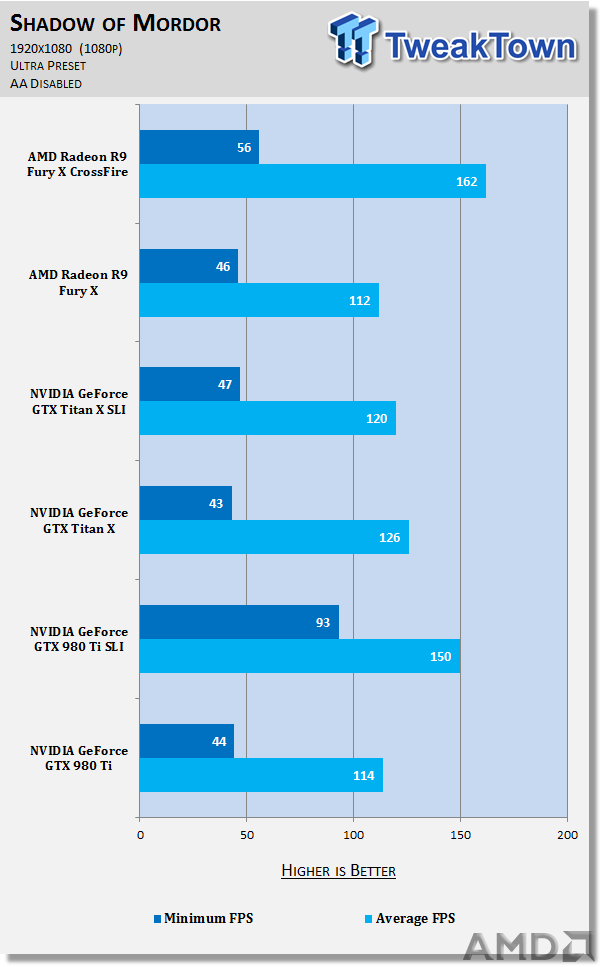

Shadow of Mordor absolutely loves the wide memory bus on the Fury X, but with two of them in CrossFire, it loves it even more, with a huge 44% increase in performance, even at 1080p. Thief was barely faster in CrossFire, while Tomb Raider lapped up the second card with a huge 85% gain in performance at 1080p. BioShock: Infinite was also enjoying the second Fury X, with a 69% gain in performance.

Shadow of Mordor大概适合Fury X的高带宽,而且两张交火更是适合,有44%的增加。Thief在交火的时候勉强来说快一点,在Tomb Raider里,有85%的巨大增长。BioShock: Infinite也适合Fury X交火,有69%的增长。

Performance at 1440p

1440p表现

This is where AMD begins to really swing things around, but our real-world performance testing in Battlefield 4 doesn't seem to benefit from the second Fury X on the Medium preset, but we do have a slight yet welcome 16% increase in performance with the CrossFire setup.

这是AMD真正开始发力的时候,但是我们在战地4的测试中(中效)并没有发现交火有什么大的加成,只有大约16%的增长。

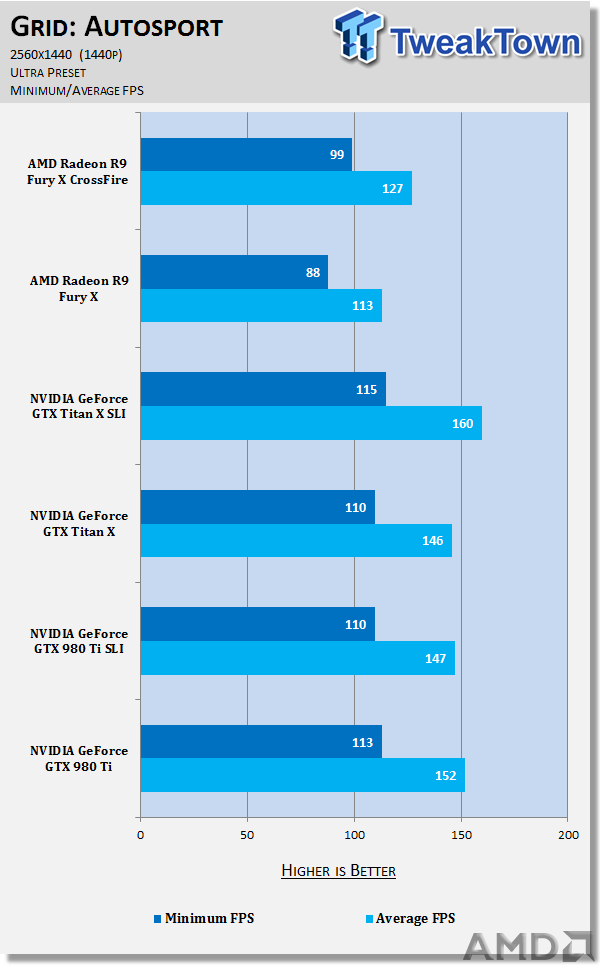

There was only 12% more performance at 2560x1440 for GRID: Autosport, but a much bigger 44% performance increase from Metro: Last Light. Shadow of Mordor once again skyrocketed with the second Fury X card, with an additional 61% performance over the single HBM-based Fury X.

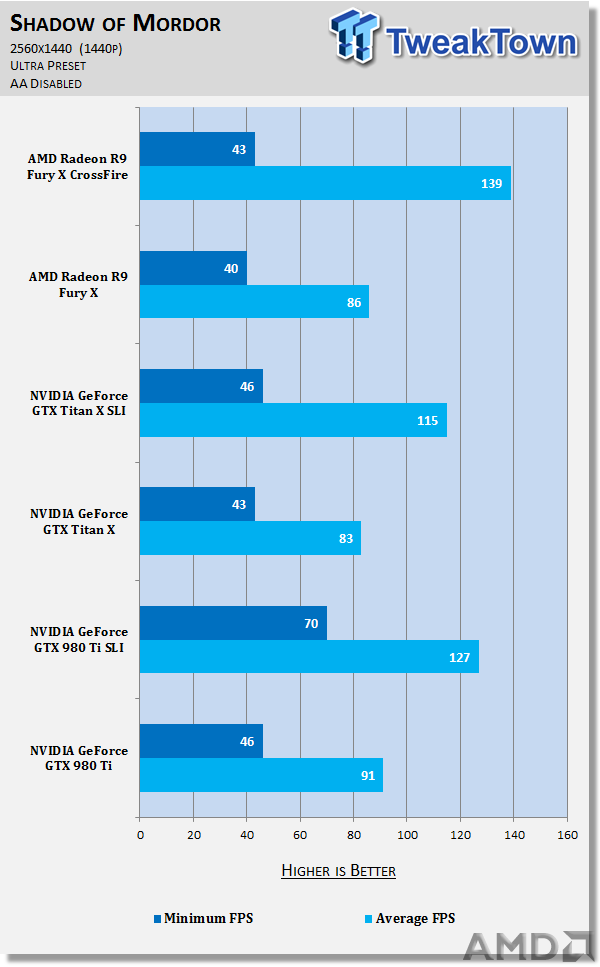

GRID: Autosport里只有12%的增长,但在Metro: Last Light里有44% 的增长,Shadow of Mordor有61%的增长。

Thief was another game that performed well under the CrossFire configuration, with a 33% increase in performance while Tomb Raider was just out of this world with an 86% increase in performance. Lastly, BioShock: Infinite also impressed, with a huge 80% jump in performance over the single Fury X.

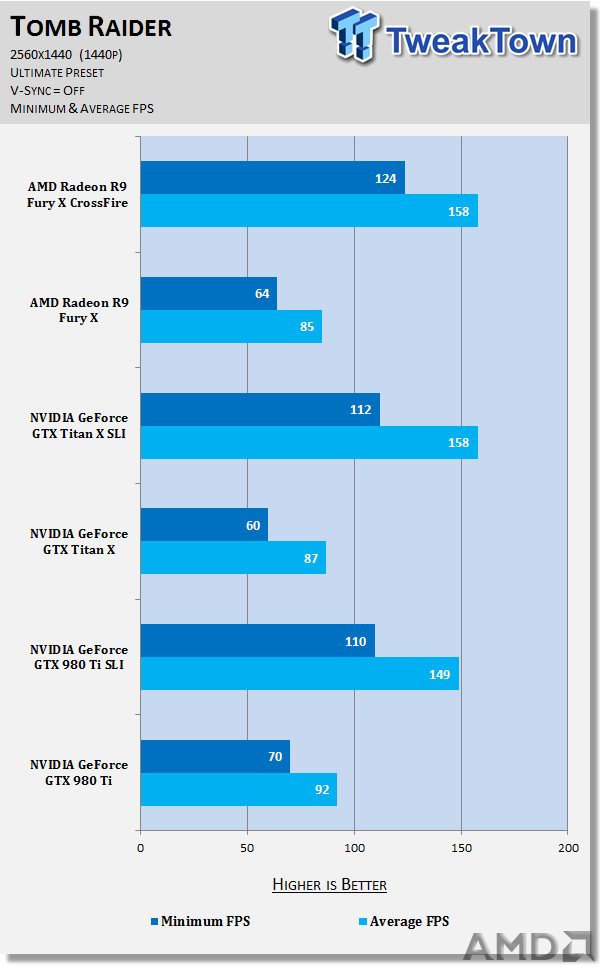

Thief的表现还不错,有33%增长,而Tomb Raider有高达86%的增长。最后BioShock: Infinite也有飞跃性的80%增长。

Performance at 4K

4K表现

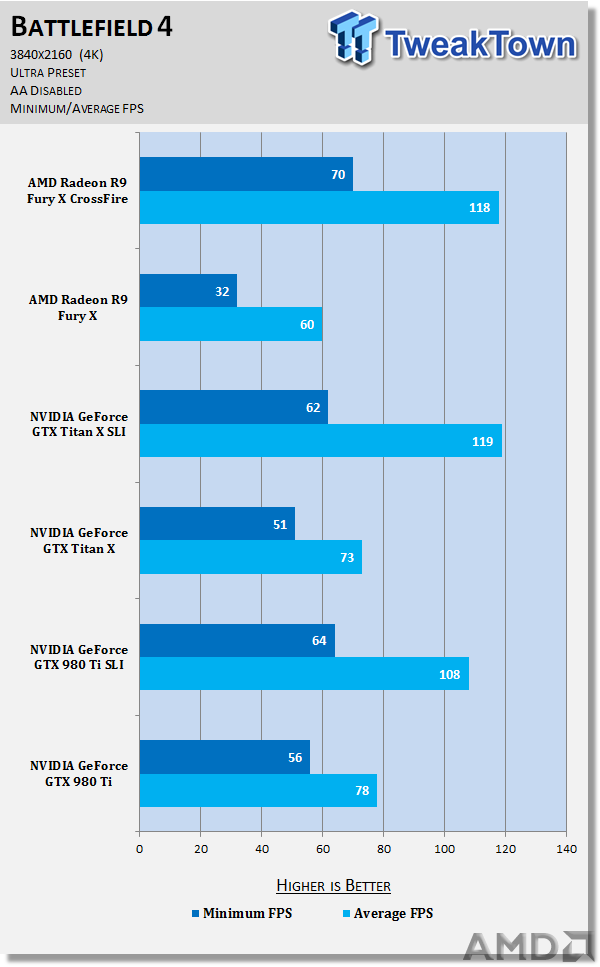

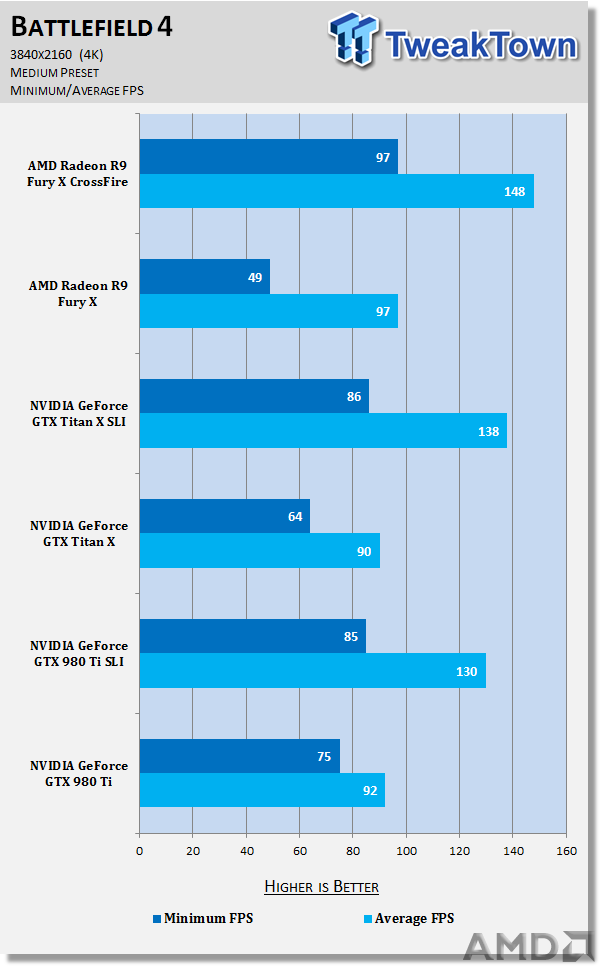

The second Fury X helps Battlefield 4 on the Medium preset at 4K, with a huge 52% increase in performance. But it was on the Ultra preset (minus AA) that had our jaws on the floor with a 97% increase in the average frame rate, with a huge 118FPS. Wow.

在战地4中,中效有52%的增长,但是在超高特效(低AA)下竟然有97%的增长,达到了118FPS,令人吃惊。

Whereas GRID: Autosport wasn't making use of the second Fury X at 1080p and 144p, at 4K we're experiencing a massive 75% increase in performance. Metro: Last Light doesn't enjoy the CrossFire setup as much as the other games at 4K, but we are still seeing a 33% increase in performance.

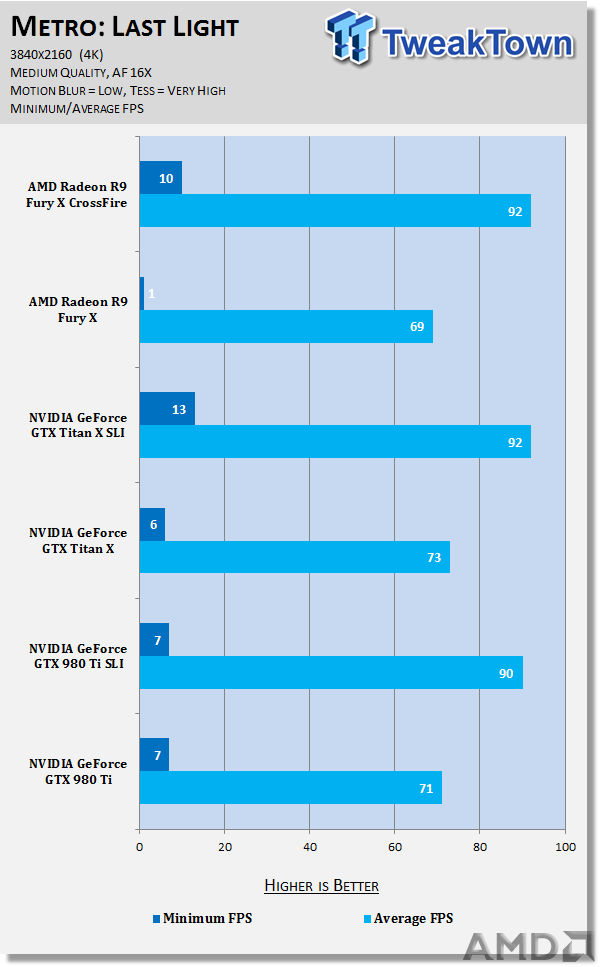

而GRID: Autosport虽然没有在1080p和1440p(网站又打错了)里有什么竟然的表现,但是在4K这里有75% 的增长。Metro: Last Light并没有什么惊人的表现,增长33%.

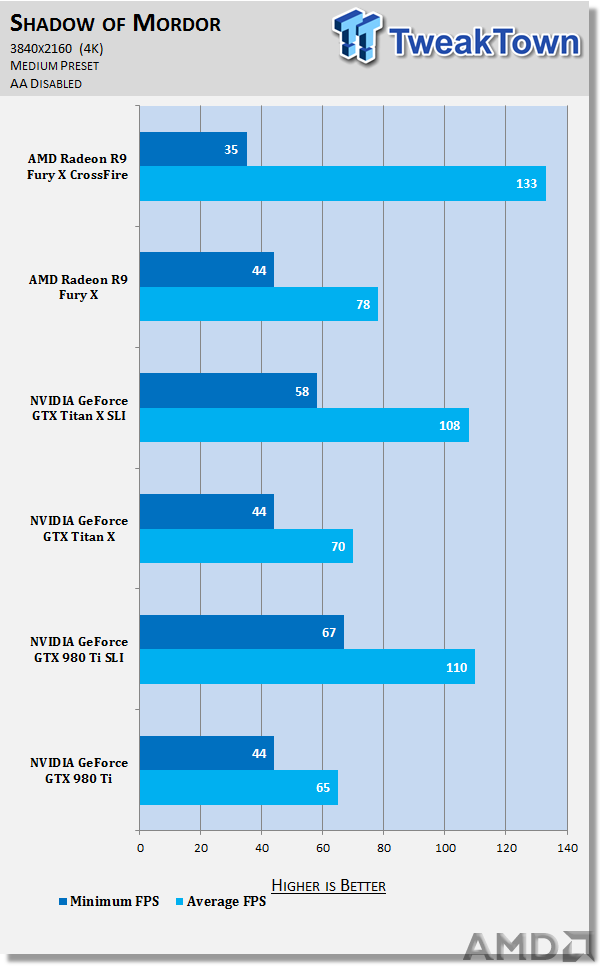

Yet again, Shadow of Mordor scales so incredibly well on the Fury X cards in CrossFire, where we have a 70% increase in performance at 4K. Thief sees a 73% increase in performance with the second Fury X card in our system, while Tomb Raider continues to impress with a huge 93% over the single HBM-based Radeon R9 Fury X. Lastly, BioShock: Infinite finishes off our impressive run at 4K with the Fury X cards in CrossFire with 86% more performance over the single Fury X.

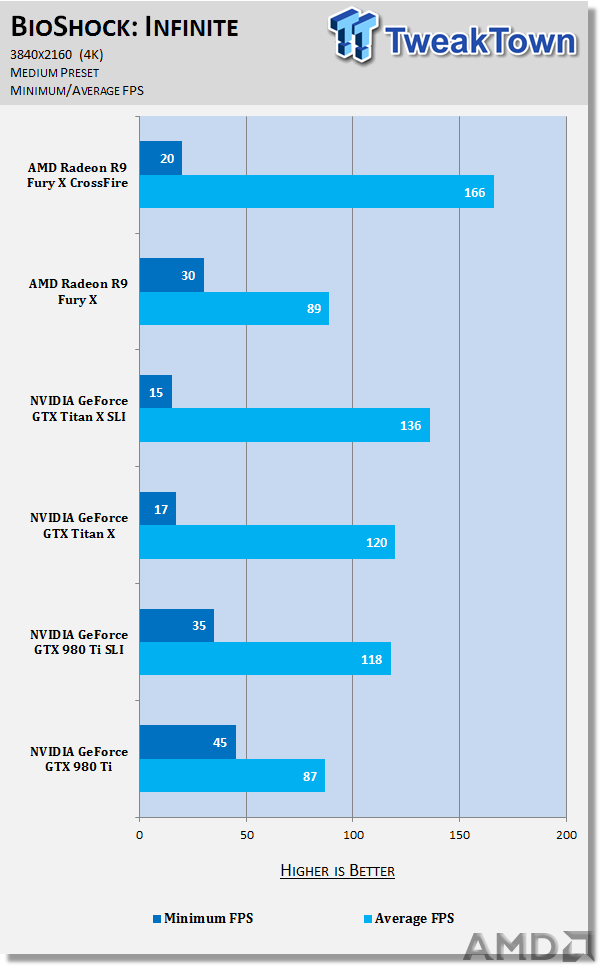

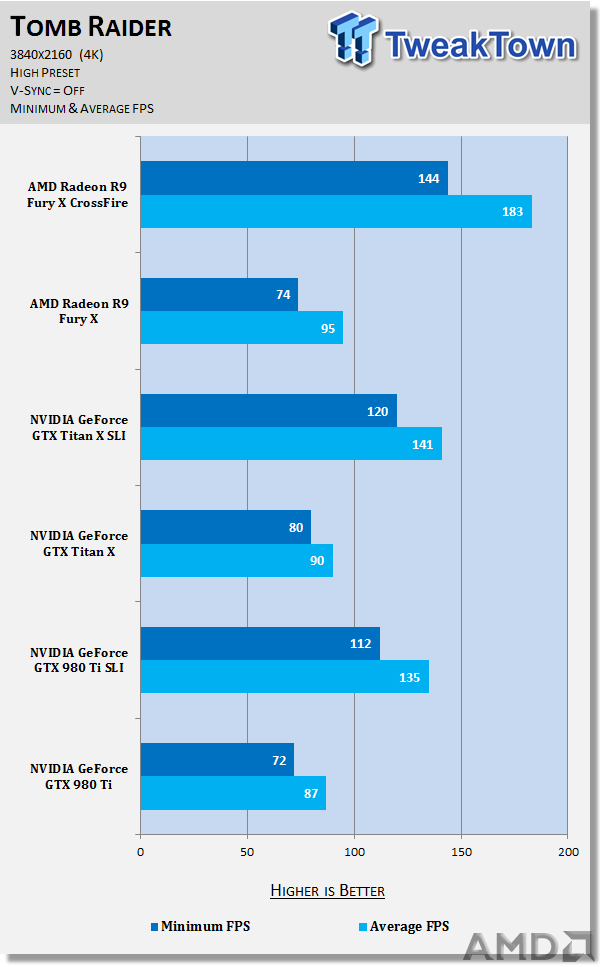

Shadow of Mordor也在交火中有很好的表现,70%增长,Thief有73% 增长,Tomb Raider也有高达93% 的增长。最后一个 BioShock: Infinite也有高达86%的增长。
Be AMDish

190

主题

2094

帖子

2万

积分

铁杆A饭

5820K + Fury X + 追风者 ES515ETG_

Rank: 20Rank: 20Rank: 20Rank: 20Rank: 20

精华
0
金币
10779
经验
10
贡献
43
 楼主| 发表于 2015-7-4 09:26:24 | 显示全部楼层
本帖最后由 包子侯爵 于 2015-7-4 10:29 编辑

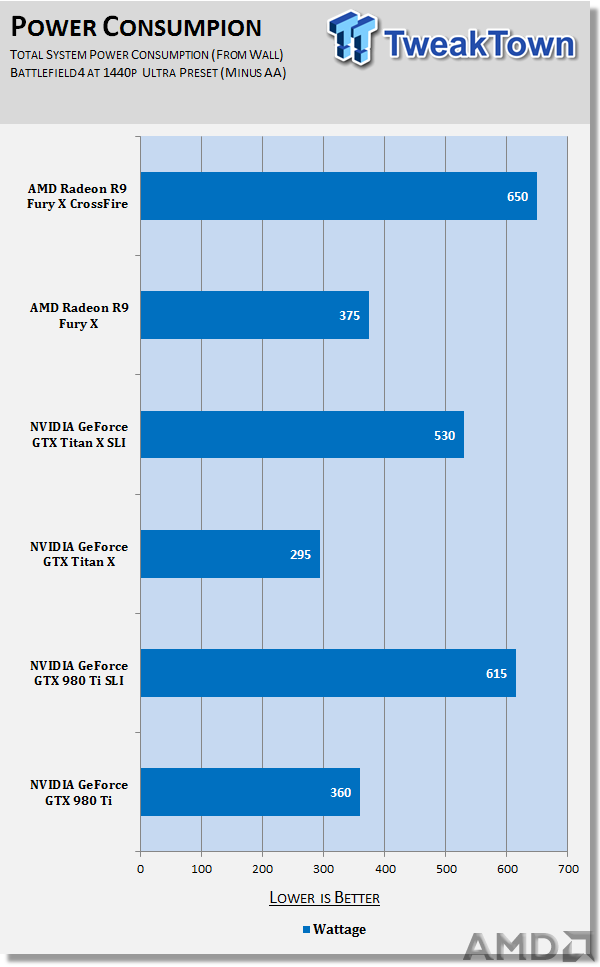

Power Consumption

功耗

Even with the use of High Bandwidth Memory, the Radeon R9 Fury X isn't a power-saving video card by any means. One of them consumes around 375W of power, while a second will see the entire system scaling up to around 650W. Comparing this to Titan X SLI which consumes around 530W, or the GTX 980 Ti SLI which is closer to Fury X CF, with 615W.

虽然用了HBM,但是Radeon R9 Fury X并不是一款低功耗的显卡。单卡375W,交火以后整个平台大约650W,和SLI的Titan X的530W相比,还是SLI的GTX 980 Ti比较接近,615W

Be AMDish

190

主题

2094

帖子

2万

积分

铁杆A饭

5820K + Fury X + 追风者 ES515ETG_

Rank: 20Rank: 20Rank: 20Rank: 20Rank: 20

精华
0
金币
10779
经验
10
贡献
43
 楼主| 发表于 2015-7-4 09:26:37 | 显示全部楼层
本帖最后由 包子侯爵 于 2015-7-4 10:54 编辑

This is where you can fast forward to the final section of the review, and get a quick recap and points on the two HBM-based AMD Radeon R9 Fury X cards in CrossFire.

最后一个环节,快速点评一下交火的AMD Radeon R9 Fury X。

What's Hot

Huge Performance: While the performance gains aren't as big in 1080p and 1440p, the gains that are to be had at 4K and beyond are nothing short of impressive. The two Fury X cards in CrossFire are able to not only compete with, but sometimes beat the best from NVIDIA.

Great CrossFire Scaling: In our synthetic benchmarking, we see the usual great scaling, but even with early drivers, we're seeing some impressive CrossFire scaling with the two GPUs in 1440p and 4K.

4GB Doesn't Feel So Limited: While High Bandwidth Memory doesn't offer any immediate performance benefits over GDDR5, the 4GB of HBM is definitely not a limiting factor when thrown into a CrossFire setup. We are going to test this more thoroughly with a couple of triple 4K EyeFinity articles very soon.

I Want To See More: Hey AMD... now that I've tested two Fury X cards in CrossFire, I'm beyond excited to see three and four of them in action. We need to make this happen.

What's Not

不足之处

Power Consumption: While the power consumption peaks at 650W, most of the time it was sitting at around 580-600W. It's more than the GeForce GTX 980 Ti cards in SLI, but not by very much.

功耗: 最大功率为650W,大多数时间上会维持在580~600W。这比SLI的GeForce GTX 980 Ti要高很多。

Fury X CrossFire Isn't Just Noisy, It's Hot, Too: One of the Fury X cards is annoying enough, but boy do two of them in CrossFire make the room warm, and slightly louder. The radiators get quite warm, to the point of heating up my entire office.

交火的Fury X又热又吵: 一块Fury X就够吵了,但是两块交火就让我的房间变热,散热是好,让我整个办公室热死……

Two Radiators = 10X Hassle: There's no easy way of installing the two radiators into a system without any troubles. I simply do not like the fact that AMD needs to use a radiator on its new Fury X, as it completely changes the way you're building or setting up your PC. You can't just install these things and forget it, you have to plan for it, and buy a chassis accordingly.

双散热器 = 10倍麻烦: 安装两个散热器进机箱并不是件容易的事。我并不喜欢AMD在Fury X上装独立散热器,因为这完全改变了机箱的结构(走线之类的吧),你装电脑的时候不能忘了有这个散热器,还要买相应的底座。

Final Thoughts

最后的想法

I have to admit it: I'm blown away. The single AMD Radeon R9 Fury X didn't really impress me, but two of them in CrossFire are an absolute powerhouse of technology. Once you get to 4K, the second HBM-based card really has your gaming experience kicking into second gear and scaling incredibly well with most of the games in our benchmarking lineup.

我不得不承认一点:好评。AMD Radeon R9 Fury X单卡并没有打动我,但是交火以后性能绝对前进,一旦你用上4K,双卡是会让你的游戏体验达到一个新的层次,缩放技术也在我们的游戏测试里有很好的表现。

I didn't think that we'd see this type of performance, with all of our games playable at 4K with over 100FPS average, except for Metro: Last Light. Battlefield 4 at 4K at 118FPS average is just amazing... something that the GTX Titan X offers, for $2000 compared to around $1300.

不认为我们测试里的性能(4K 100FPS的平均帧数)在所有游戏里都会出现。和GTX Titan X的2000刀相比,1300刀的Fury在Metro: Last Light和4K 118FPS的战地4的帧数太惊人了。

The two radiators are annoying beyond words, there's just nothing I can type into an article that expresses my displeasure of the two huge radiators. Sure, AMD has cool operating cards with the Fury X, with around 50-55C under stress, while the upcoming Fury (which will be air-cooled) will run at around 70-75C depending on the card.

两个散热器实在是烦人,但我只能发表文章来表达我的不满。当然AMD的水冷系统让Fury X的温度在50~55摄氏度,而Fury的风冷也会在70~75摄氏度。

This means that the Fiji GPU is getting damn hot, and it simply needs water cooling to even compete with NVIDIA's offerings like the GeForce GTX 980 Ti and Titan X which are both air-cooled. This brings us down to the wire: if you're building a new PC, even if the Fury X or Fury X CrossFire beats the GTX 980 Ti, I would still recommend an SLI build of the GTX 980 Ti cards.

这意味着Fiji会越来越热,而就需要用水冷来达到GeForce GTX 980 Ti和Titan X两款风冷产品的温度。这里有个提示,如果你想配新电脑,尽管Fury X和其交火性能会打败GTX 980 Ti,我依然建议组SLI的GTX 980Ti。根据XXX,此处有字未予以明文显示,请选中查看

You can throw them into your system without the need of two huge spots for watercooling, and there are now plenty of third-party cards to choose from with great overclocks and cooling technology slapped onto them. This doesn't take away from the fact that AMD fans can rest assured that Fury X in CrossFire kicks some serious NVIDIA ass. Way to go, AMD.

你可以不用两个巨大的水冷散热器,之后有许多非公版的超频卡会使用更好地散热技术。但这不会掩盖一个事实:A饭们可以放心,Fury X可以重重的打Nvidia信众的脸。继续前进吧,AMD!
