【转】独家：蓝宝石Radeon R9 Fury爆照及确切规格

包子侯爵

Title：Exclusive: Sapphire Radeon R9 Fury pictured, specifications confirmed
From：http://videocardz.com/57078/excl ... fications-confirmed

Sapphire Radeon R9 Fury comes in two variants

蓝宝石Radeon R9 Fury将有两种型号

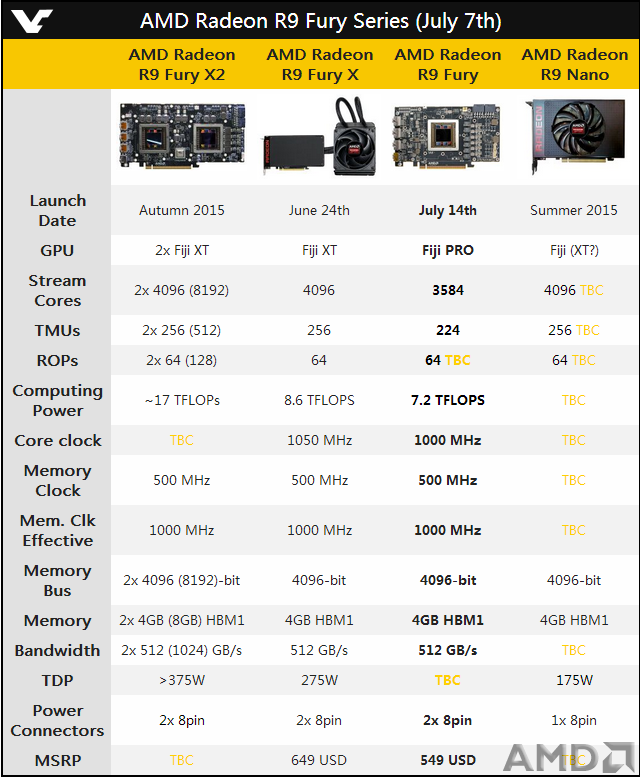

We have confirmed specs of Radeon R9 Fury along with some pictures. Sapphire is working on two R9 Fury cards equipped with the same cooling solution (triple-fan Tri-X). It seems reference clock of R9 Fury is 1000 MHz, while the overclocked card from Sapphire is rated at 1040 MHz, which is still lower than Fury X. It is now confirmed Radeon R9 Fury has 3584 (56 Compute Units) and 4GB HBM1 4096-bit memory clocked at 500 MHz. You can learn more from the chart below:

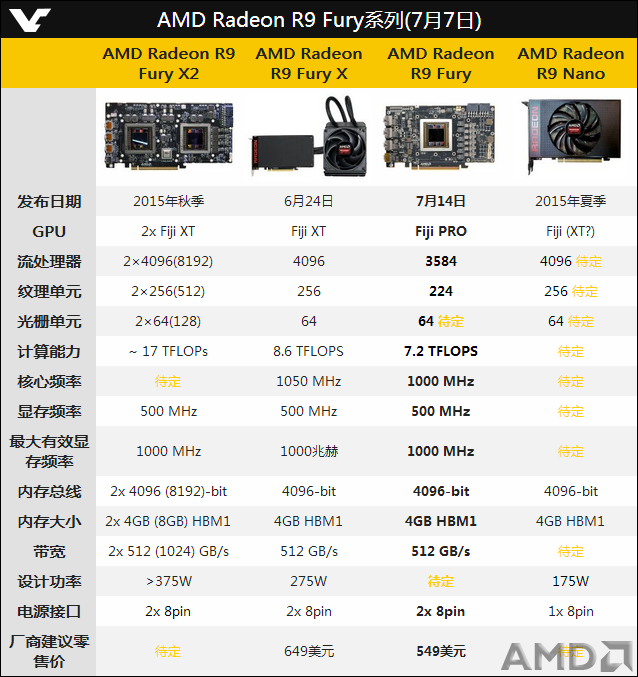

我们已经确认了Radeon R9 Fury的规格和一些图片。蓝宝石在准备两款用相同冷却方案（三风扇的Tri-X）的R9 Fury。看起来R9 Fury的参考默认频率还是1000MHz，而蓝宝的超频卡主频为1040MHz，但这仍低于Fury X的主频。现在证实Radeon R9 Fury有3584个流处理器（56个计算单元）和4GB的HBM 4096-bit显存（500MHz）。你可以从下列图表中获得更多信息：

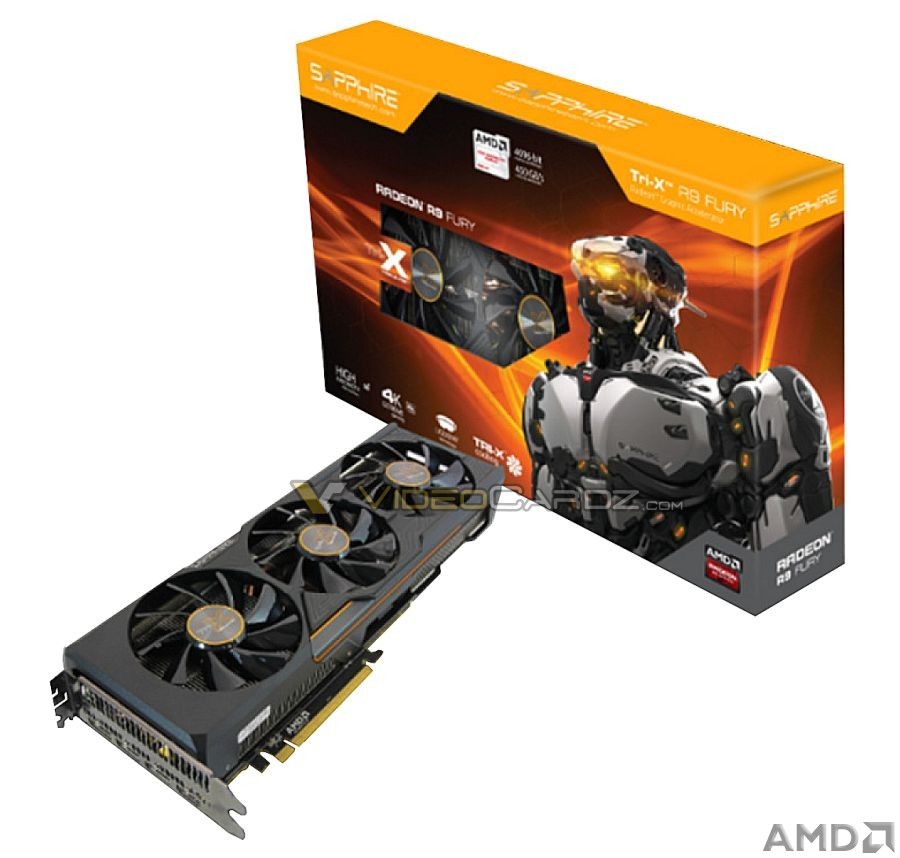

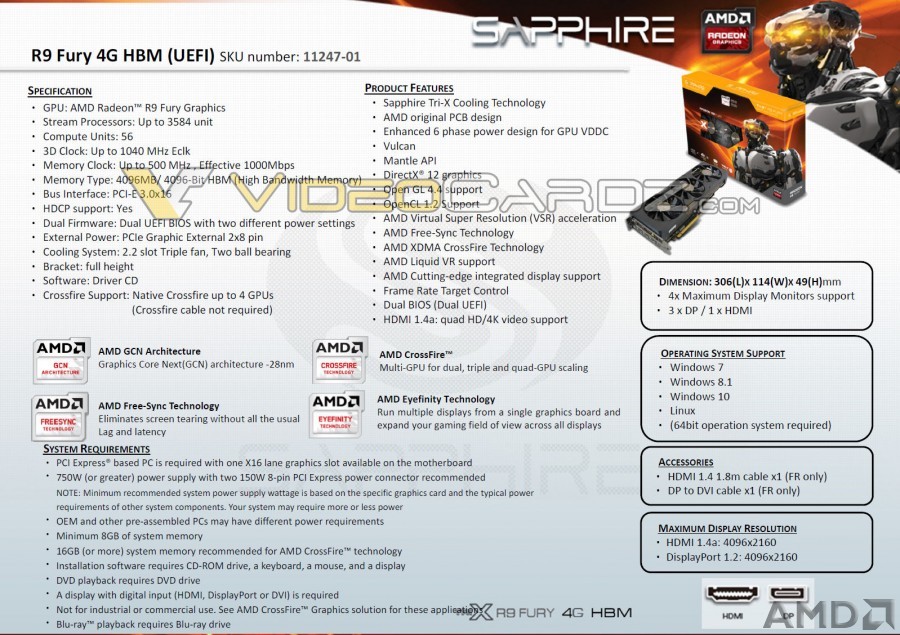

Here’s Sapphire R9 Fury which comes in two variants: 11247-00-40G with 1000 MHz clock and 11247-01-40G with 1040 MHz clock. Both cards share the same design and both come with a backplate.

这是蓝宝石R9 Fury的两种型号11247-00-40G（1000MHz主频）和11247-01-40G（1040MHz主频）。两张卡使用相同的设计和背板。

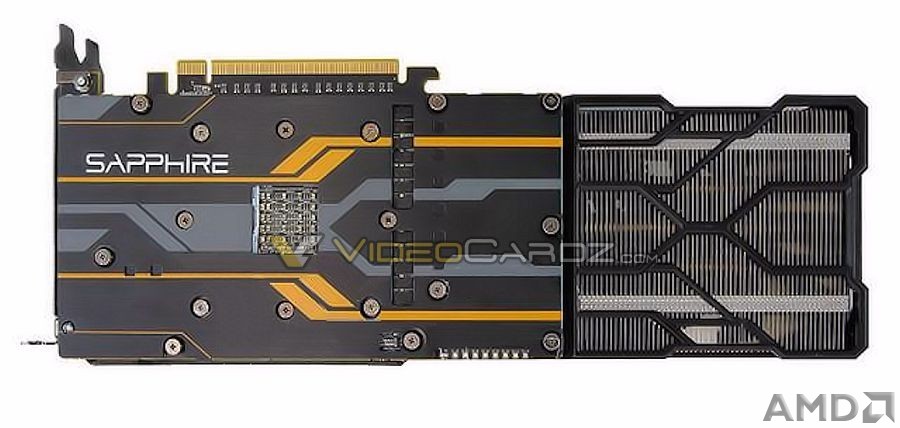

Behind the back-plate lies the original R9 Fury PCB. I’m quite confident this is the same PCB as offered with the Fury X (board number C880). It has two 8pin power connectors and GPU Tach (LED load indicator).

在背板后面是原装的R9 Fury PCB。我很有信心，因为他们都是和Fury X一样的PCB板（板编号C880）。它有两个8pin电源接口和GPU负载指示LED灯。

AMD Radeon R9 Fury is equipped with four display connectors: 3x DisplayPort 1.2 and one HDMI (1.4a). R9 Fury will fill the gap between R9 390X and R9 Fury X, which is somewhere between GTX 980 and GTX 980 Ti. Card launches exactly in a week.

AMD Radeon R9 Fury有四个显示接口：3个DisplayPort 1.2和一个HDMI (1.4a)。R9 Fury将会填补R9 390X和R9 Fury X的空档，也就是处于GTX 980和GTX 980 Ti间的空档。显卡将于一周后推出。

j33123335

又国内专供,板砖

FURYZ

这么长的散热，组小钢炮是无望了。背板看起来好像毒药
