需要刷BIOS，高风险
atomtool
简单ATOMBIOS表操作工具
免责声明
这个软件提供了“是”没有任何形式的保证。
在任何事件不得作者,或任何人的任何损失负责,
任何类型的费用或损坏,或引起的使用性质
或者无法使用该软件或程序,包括
但不限于,索赔,诉讼或行动涉及的原因
涉嫌侵犯版权,专利,或商业秘密。
如何(试图)开启核游戏斐济的筹码。
目前仅适用于愤怒空气卡与斐济PRO芯片。
愤怒X主人这里找不到任何有用的东西。
WARINING。 这是一个高风险的做法。 你只在你自己的风险。
最终你可以造成不可逆转的损害你的信用卡或不稳定或non-booting系统。
(稍后我将添加一些操作理论)。
如何试着核心解锁:
1。 收集所有需要的工具:
——cuinfo v1.5或更高版本。
你已经知道在哪里可以得到它。
——atiflash斐济的支持。
今天,有点棘手了。 我不能够找到DOS版本,但是atiflash Windows v2.70工作很好。
去华硕网站和抓住GPU调整II或R9机型愤怒BIOS更新工具包。 安装GPU调整II或解压R9机型愤怒BIOS更新工具包来一个新文件夹。 你会发现Fiji-compatible atiflash里面这些包。
命令行和GUI的变体atiflash华硕提供的。
你需要这些文件从GPU调整II或R9机型愤怒BIOS更新:atidgllk。 sys AtiFlash。 exe atikia64。 sys atillk64。 sys ULPSCtrl.dll。
警告:不要使用GUI变体,AtiWinflash。 exe,因为它坏了。 与256 kb rom AtiWinflash作品不正确! 使用atiflash。 exe。
常见的误解相反,atiflash的Windows版本是稳定和良好的使用。 爱尔兰联合银行供应商使用它来upgrage VBIOS生活更新系统,所以为什么你害怕吗? 慢,DOS版本,但仍稳定可靠。
注意:千万不要运行任何3 d应用程序与atiflash工作时。 记住,atiflash需要提升权限,所以使用管理员的命令行。
——atomtool.py
在这里下载: 过时的
http://rghost.ru/6czV8zp2C
完整性检查(sha1sum):
a65c994bd2ebffef494d1db806fce8f215629a69 atomtool_v10.zip
a6d933fee9b6a9931ee08232d5f4cfb30dc90c33 atomtool.py
e4b81badb9d9b4bc2326944fc25331f4c945dfd7 atomtool.txt
31791244 ae2ade681129ad9f748f0072ddef66f7 makeroms.bat
这是一个小更新atomtool v1.1 当前版本在这里
http://rghost.ru/68mVPFxG6
7 e39c693a413c3ad6fb0398afa001d698589de69 atomtool_v11.zip
24 cbaba2c654c5b68ee8f8db7d8748e487034c1e atomtool.py
e4b81badb9d9b4bc2326944fc25331f4c945dfd7 atomtool.txt
31791244 ae2ade681129ad9f748f0072ddef66f7 makeroms.bat
新特性:
*激活码现在应该有点干净,但我不确定任何差异的实际工作。
atomtool。 py是一个Python 2程序,所以你要在一个单一可执行文件和源代码文件。 Python是一种出色的编程语言和跨平台运行时用于大多数的操作系统。
Windows下你可能没有安装Python,所以去它的官方网站,抓住一个运行时包的Python 2(或3,但这并不是测试):
https://www.python.org/downloads/windows/
2。 重要的。 你当前的bios进行备份。
不要依赖GPU-Z备份和techpowerup自BIOS的数据库读取从斐济GPU-Z并不完整,它只有128 kb的256 kb。
尽管BIOS的主要部分存在于GPU-Z转储,部分数据没有备份。
GPU-Z备份可以作为最后的手段,但我强烈建议使用atiflash生产的完整备份。
使用命令行atiflash和atomtool。 py,你需要知道如何使用命令行窗口(用于cmd . exe)。 如果你不知道它是什么,谷歌之前先试一试。
——备份您当前的BIOS:
atiflash - s 0 bios_backup_xxx.rom
0是卡片的数量在您的系统。 使用其他号码如果你备份,在CF卡的配置。
xxx是你当前的BIOS开关位置,右(对电源连接器)左(显示连接器和面板)
- BIOS翻转开关和备份第二BIOS:
atiflash - s 0 bios_backup_yyy.rom
根本使用当前BIOS的位置。
3。 得到一个cuinfo报告和检查状态和点缀地图:
斐济、报告应该像:“8铜被禁用的HW锁,覆盖是可能的在你自己的风险。”。
如果它说“对不起… ”,你运气不好。代码:
SE1 hw/sw: 00050000 / 00000000 [.............x.x]SE2 hw/sw: 00030000 / 00000000 [..............xx]SE3 hw/sw: 00030000 / 00000000 [..............xx]SE4 hw/sw: 00030000 / 00000000 [..............xx]56 of 64 CUs are active. HW locks: 8 (R/W) / SW locks: 0 (R/W).8 CU's are disabled by HW lock, override is possible at your own risk.
一般来说,你可以尝试解锁一些核心只有如果你有至少一个充满了“x”——两个右边的列。 在这个示例图,右边的列(# 1)充满了“x”——,但是第二(# 2)不是。
如果没有两个右边的列充满了“x”,你最有可能运气不好,不应该试试这个解锁方法。 或只是尝试所有的rom捕捉一些运气(不推荐)。
注意:所有x的列并不能保证你的成功和安全解锁。
4。 从你的BIOS生成rom备份。
为了简化罗代,windows脚本文件,makeroms。 蝙蝠被添加到atomtool包。
使用它:
makeroms。 蝙蝠bios.rom
(这里的bios。 罗是你的BIOS备份文件)。
如果Python安装和集成路径,最终你会3新BIOS的:
bios_4low.rom
bios_4high.rom
bios_all.rom
(' bios '这是你的原始文件名称w / o扩展)。
选择您需要的罗:
如果你有所有“x”的右边的列,使用bios_4low.rom
如果你有所有“x”的第二列,使用bios_4high.rom
任何一种rom将增加材质数到3840。
如果你有这两列中的所有“x”,你可以试试bios_all.rom。 如果失败了,尝试_4low和_4high吉卜赛男人一个接一个,直到你可能得到一个稳定的GPU。
同样的,如果你喜欢住危险的你可以试试bios_all。 在任何情况下罗。
_all。 罗将解锁所有4096的核心,但由于(最的?) 斐济箴芯片做没有核心,你可能会不稳定或non-booting系统。
闪卡的使用:
atiflash p 0 some_bios.rom
(这里some_bios。 罗是你想flash的文件)。
5。 如何检查稳定或恢复的变化。
只使用你知道测试的所有工具和性能稳定。
如果您的系统不稳定,只需执行以下操作:
- bios翻转开关,重新启动;
——然后引导到windows,翻转切换和再引燃这个坏的位置与已知良好的备份。
6。 如何使用atomtool.py的其他特性。
请阅读atomtool。 txt捆绑atomtool存档。 atomtool可以用来玩powerplay表,等等。
编辑tx12 - 8/2/15 9:27am
atomtool
Simple ATOMBIOS table manipulation tool
DISCLAIMER
THIS SOFTWARE IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND.
IN NO EVENT SHALL AUTHOR, OR ANY PERSON BE LIABLE FOR ANY LOSS,
EXPENSE OR DAMAGE, OF ANY TYPE OR NATURE ARISING OUT OF THE USE
OF, OR INABILITY TO USE THIS SOFTWARE OR PROGRAM, INCLUDING,
BUT NOT LIMITED TO, CLAIMS, SUITS OR CAUSES OF ACTION INVOLVING
ALLEGED INFRINGEMENT OF COPYRIGHTS, PATENTS, OR TRADE SECRETS.
How to (try to) unlock cores on unlockable Fiji chip.
Currently applies ONLY to Fury Air cards with Fiji PRO chips.
Fury X owners won't find here anything useful.
WARINING. THIS IS A HIGH RISK PRACTICE. YOU'RE ACTING AT YOUR OWN RISK ONLY.
You can irreversibly damage your card or end up with unstable or non-booting system.
(I'll add some theory of operation later).
How to try core unlocking:
1. Gather all the needed tools:
- cuinfo v1.5 or later.
You already know where to get it.
- atiflash with Fiji support.
That's a little tricky for today. I wasn't able to find DOS version, but atiflash for Windows v2.70 works pretty fine.
Go to ASUS website and grab GPU Tweak II or R9 FURY BIOS update toolkit. Install GPU Tweak II or unpack R9 FURY BIOS update toolkit to a new folder. You'll find Fiji-compatible atiflash inside any of these packages.
Both command line and GUI variants of atiflash are supplied by ASUS.
You'll need these files from GPU Tweak II or R9 FURY BIOS update: atidgllk.sys AtiFlash.exe atikia64.sys atillk64.sys ULPSCtrl.dll.
WARNING: Don't use GUI variant, AtiWinflash.exe because it broken. AtiWinflash works incorrectly with 256KB roms! Use atiflash.exe ONLY.
Contrary to common misconception, Windows version of atiflash is stable and good to use. AIB vendors use it to upgrage VBIOS in their live update systems, so why should you be afraid of it? Its slower that DOS version, but still stable and reliable.
NOTE: Be sure not to run any 3D applications while working with atiflash. Remember, atiflash requires elevated privileges, so use Administrator's command line.
- atomtool.py
Download it here: outdated
http://rghost.ru/6czV8zp2C
Integrity check (sha1sum):
a65c994bd2ebffef494d1db806fce8f215629a69 atomtool_v10.zip
a6d933fee9b6a9931ee08232d5f4cfb30dc90c33 atomtool.py
e4b81badb9d9b4bc2326944fc25331f4c945dfd7 atomtool.txt
31791244ae2ade681129ad9f748f0072ddef66f7 makeroms.bat
Here is a small update to atomtool, v1.1 current version is here
http://rghost.ru/68mVPFxG6
7e39c693a413c3ad6fb0398afa001d698589de69 atomtool_v11.zip
24cbaba2c654c5b68ee8f8db7d8748e487034c1e atomtool.py
e4b81badb9d9b4bc2326944fc25331f4c945dfd7 atomtool.txt
31791244ae2ade681129ad9f748f0072ddef66f7 makeroms.bat
What's new:
* activation code should be a little cleaner now, but I'm not sure about any difference in real work.
atomtool.py is a Python 2 program, so you're getting executable file and source code in one single file. Python is a brilliant programming language with cross platform runtime available for the most of operating systems.
Under Windows you probably don't have Python installed, so go to it's official website and grab a runtime package of Python 2 (or 3, but that's not tested):
https://www.python.org/downloads/windows/
2. IMPORTANT. Make a backup of BOTH of your current BIOSes.
DON'T rely on GPU-Z backups and techpowerup's database since BIOS read from Fiji with GPU-Z is not complete, its only 128KB out of real 256KB.
Although main part of the BIOS is present in GPU-Z dumps, some part of data is not backed up.
GPU-Z backup can be used as a last resort, but I strongly suggest use of full backups produced by atiflash.
To use command line atiflash and atomtool.py, you'll need to know how to work with Windows command line (cmd.exe). If you're not sure what it is, google it first before you try.
- backup your current BIOS:
atiflash -s 0 bios_backup_xxx.rom
here 0 is the number of the card in your system. Use other numbers if you're backing up more that one card in CF configuration.
xxx is your current BIOS switch position, right (towards power connectors) of left (towards display connectors and a face plate)
- flip BIOS switch and backup second BIOS:
atiflash -s 0 bios_backup_yyy.rom
for yyy use current BIOS position.

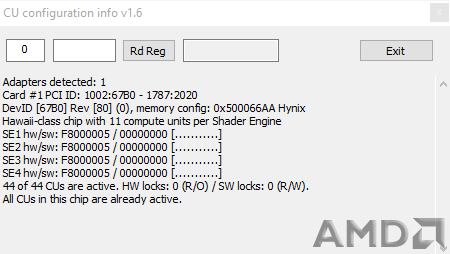

3. Get a cuinfo report and examine the status and dotted map:
For Fiji, report should be like: "8 CU's are disabled by HW lock, override is possible at your own risk.".
If it says "Sorry...", you're out of luck.Code:
SE1 hw/sw: 00050000 / 00000000 [.............x.x]SE2 hw/sw: 00030000 / 00000000 [..............xx]SE3 hw/sw: 00030000 / 00000000 [..............xx]SE4 hw/sw: 00030000 / 00000000 [..............xx]56 of 64 CUs are active. HW locks: 8 (R/W) / SW locks: 0 (R/W).8 CU's are disabled by HW lock, override is possible at your own risk.
In general, you can try to unlock some cores ONLY if you have at least one of the two rightmost columns filled with 'x'-es. On this example map, rightmost column (#1) is filled with 'x'-es only, but second (#2) is not.
If none of the two rightmost columns is filled with 'x', you're most probably out of luck and shouldn't try this unlock method. Or just try all the roms to catch some luck (not recommended).
NOTE: all x'es in the column DOES NOT guarantee you a safe and successful unlock.
4. Generate roms from your BIOS backup.
To simplify rom generation, windows script file, makeroms.bat is added to the atomtool package.
use it as:
makeroms.bat bios.rom
(here bios.rom is your BIOS backup file).
If Python is installed and intergated in path, you'll end up with 3 new BIOS'es:
bios_4low.rom
bios_4high.rom
bios_all.rom
('bios' here is your original file name w/o extension).
Select the rom you need:
If you have all 'x' in the first rightmost column, use bios_4low.rom
If you have all 'x' in the second column from the right, use bios_4high.rom

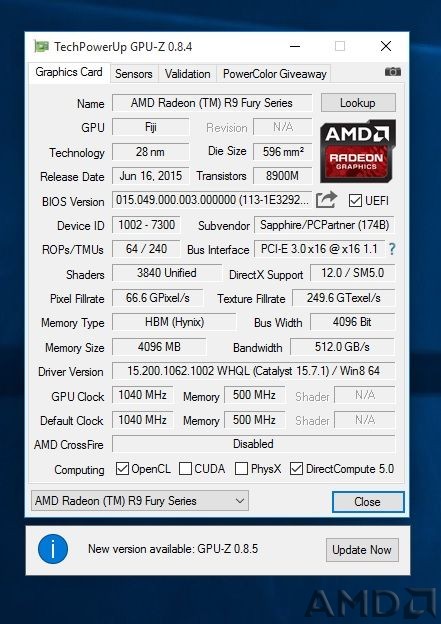

Any of these roms would increase shader count to 3840.
If you have all 'x' in the both columns, you can try bios_all.rom. If it fails, try both of _4low and _4high roms one by one until you're possibly get a stable GPU.
Also, if you like to live dangerously you can try bios_all.rom in any case.
_all.rom will unlock all 4096 cores, but since (the most of?) Fiji PRO chips do have failed cores, you'll probably get unstable or non-booting system.
To flash the card use:
atiflash -p 0 some_bios.rom
(here some_bios.rom is the file you want to flash).
5. How to check stability or revert changes.

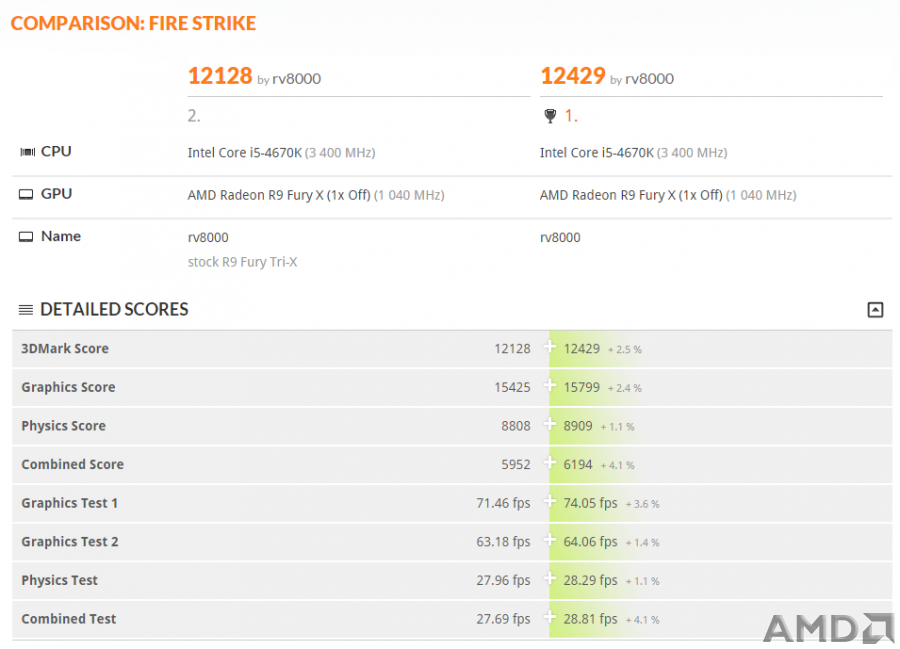

Just use all the tools you know to test stability and performance.
If your system is not stable, simply do the following:
- flip the bios switch and reboot;
- then booted into windows, flip switch back and reflash this bad position with known good backup.
6. How to use other features of atomtool.py.
Please read atomtool.txt bundled in atomtool's archive. atomtool may be used to play with powerplay tables, and more.
Edited by tx12 - 8/2/15 at 9:27am
|
|
